Piston Set 1986-1993 Chevrolet,GMC,Isuzu,Pontiac 2.8L (Oversizes Available)

MPN P3114
In-Stock
$321.53 $19999 SAVE 38%

Next-Day Delivery for $17.99

Piston Set 1986-1993 Chevrolet,GMC,Isuzu,Pontiac 2.8L (Oversizes Available)

In-Stock
MPN P3114
$321.53 $19999 SAVE 38%

Next-Day Delivery for $17.99

Short Description: Brand New DNJ® Piston Set
Part Type: Piston Set
Part Notes: 1.5x2.0x4.75
Warranty: 12 month or 12,000 mile warranty whichever comes first. Warranty must be requested by the original purchaser and is limited to the replacement of the alleged defective part(s) only.
Dimension: 14X10X6

Please select an option

QTY:

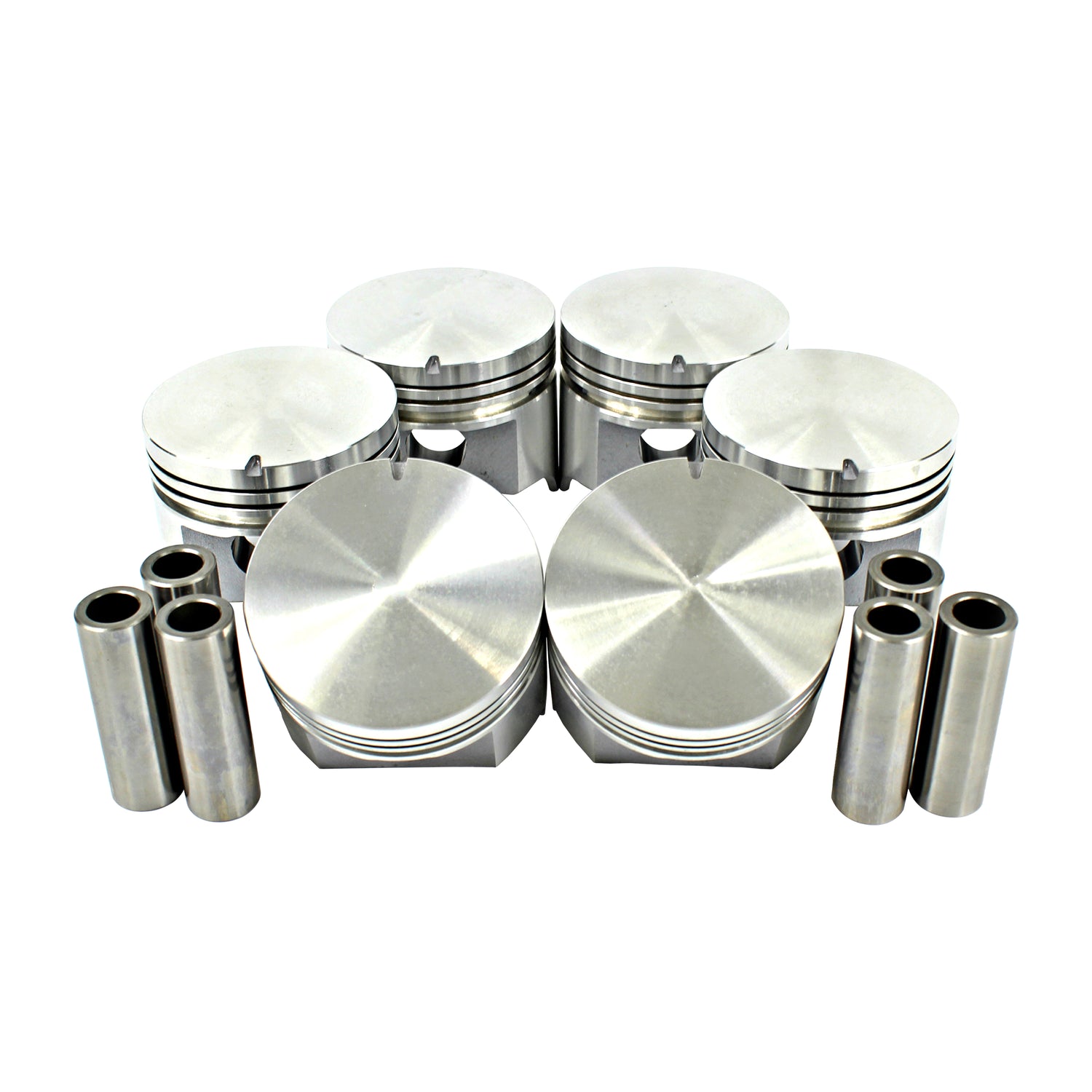

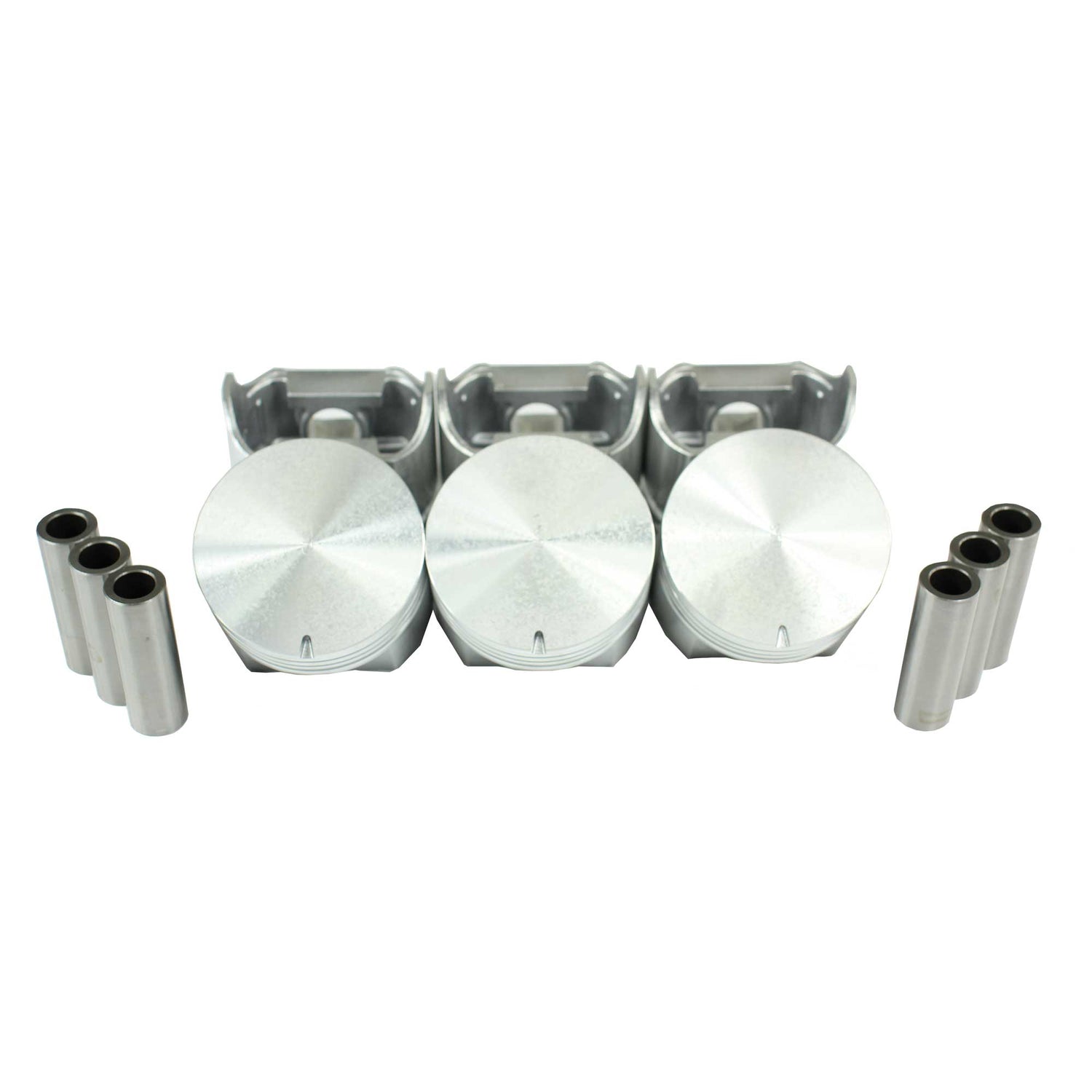

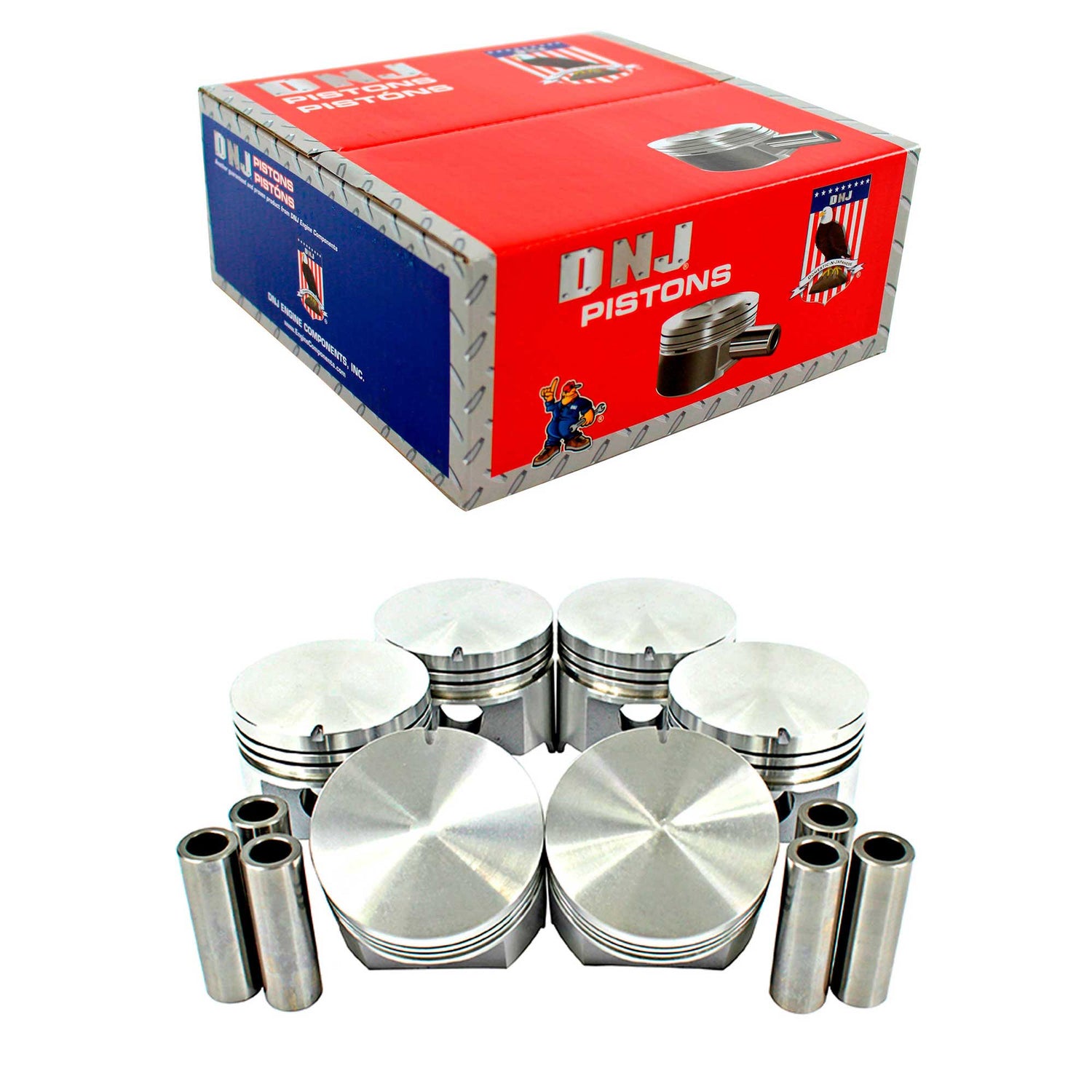

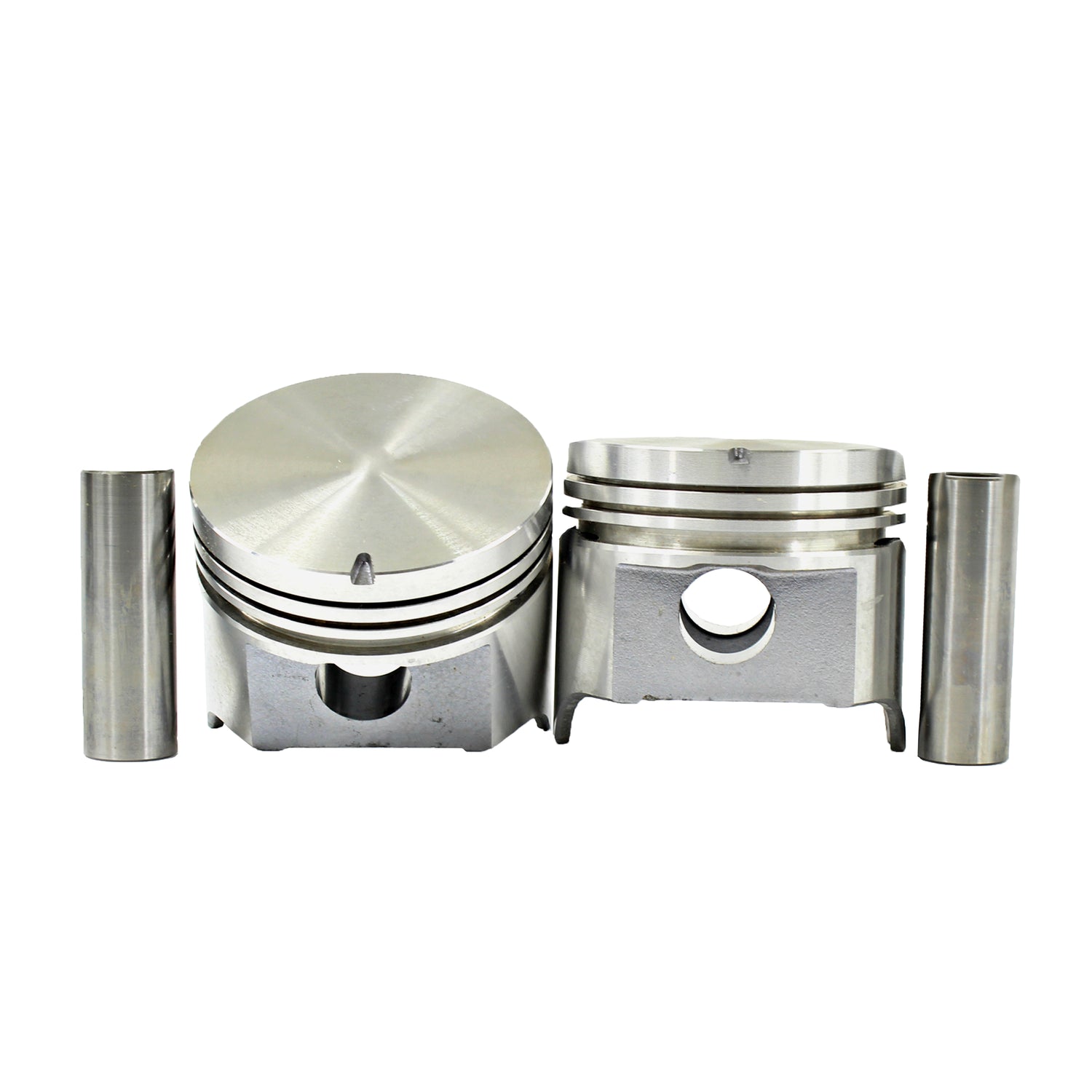

The DNJ P3114 is a piston set that fits 1986-1993 Chevrolet, GMC, Isuzu & Pontiac vehicles equipped with the 2.8L V6 engine.

Product specifications

  • Manufacturer: DNJ Engine Components
  • Manufacturer Part Number: P3114
  • Part Type: Engine Piston Set
  • Engine: 2.8L V6 12V OHV
  • VIN Engine Identifier: R
  • Notes: 1.5x2.0x4.75; w/o Rings
  • Bore Diameter: 89 mm
  • Piston Head Type: Flat
  • Oil Ring Thickness: 4.75 mm
  • Second Compression Ring Thickness: 2 mm
  • Top Compression Ring Thickness: 1.5 mm
  • Grade Type: Premium
  • Condition: New

Available sizes

  • Standard
  • Oversize .030 in. (.75mm)

Select your size above before adding to cart. Confirm the size your engine needs before purchasing.

Vehicle compatibility

Year Make Model Engine
1986-1989 Chevrolet Camaro 2.8L V6 12V 173cid
1987-1993 Chevrolet S10 2.8L V6 12V 173cid
1987-1989 Chevrolet S10 Blazer 2.8L V6 12V 173cid
1987-1990 GMC S15 2.8L V6 12V 173cid
1987-1989 GMC S15 Jimmy 2.8L V6 12V 173cid
1991-1993 GMC Sonoma 2.8L V6 12V 173cid
1989-1991 Isuzu Trooper 2.8L V6 12V VIN R
1986-1989 Pontiac Firebird 2.8L V6 12V 173cid

Confirm compatibility using the vehicle's year, make, model and engine size on our check compatibility tool.

Warranty

12-month or 12,000-mile warranty, whichever comes first. Warranty must be requested by the original purchaser and is limited to the replacement of the alleged defective part(s) only.
